Nightvision Clip on Sight ATN
This device with image intesifier tube Gen.2+ CGTI has resolution 45-54 lp/mm, S/N ratio min. 14, FOM max. 1 250, Photocathode sensitivity 300-350 µA/lum, lifetime is till 10 000 hours. Device is shipped without data sheet.
Representing the latest advancement in Night Vision Optics, the ATN PS40-CGTI gives your daytime scope Night Vision capability in a matter of seconds. The ATN PS40-CGTI mounts in front of a Daytime Scope to enable nighttime operation. No shift of impact, no need to rezero nor change of eye relief occurs. The ATN PS40-CGTI uses the latest in image intensifier tube technology for outstanding resolution and performance.
Precision optical alignment is essential for a front sight system to work properly. This is why each ATN PS40-CGTI is individually tested and aligned on an optical scale by our engineers to provide perfect alignment. The ATN PS40-CGTI is one of the most compact and lightweight NV systems in its class, at only 840 grams.
Features:
Easily changes daytime scope to Night Vision
Mounts in front of the daytime scope, no re-zeroing required
Multi-coated all-glass optics
Fast catadioptic front lens system
Large 40 mm output window
Lightweight and rugged

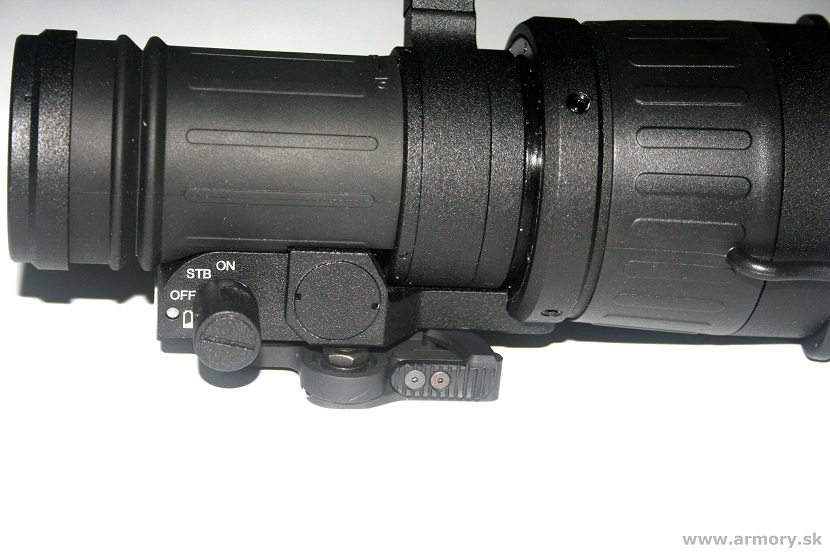

Comes with Quick Release Mount
Optional 7/8” weaver mount
Optional Scope Mounting System attaches the PS40 unit to the objective of the day scope (47-50; 56-58.7 mm diameter)
Specifications:
Total Darkness IR System Yes
"SMART" Technology No
IIT Generation 2+ CGTI
Resolution 45-54 lp/mm
Magnification 1x
Lens System F1:1.44, 80mm
Proshield Lens Coating Yes
FOV 12°
Exit Pupil 40 mm
Range of Focus 10 m to infinity
Diopter Adjustment No

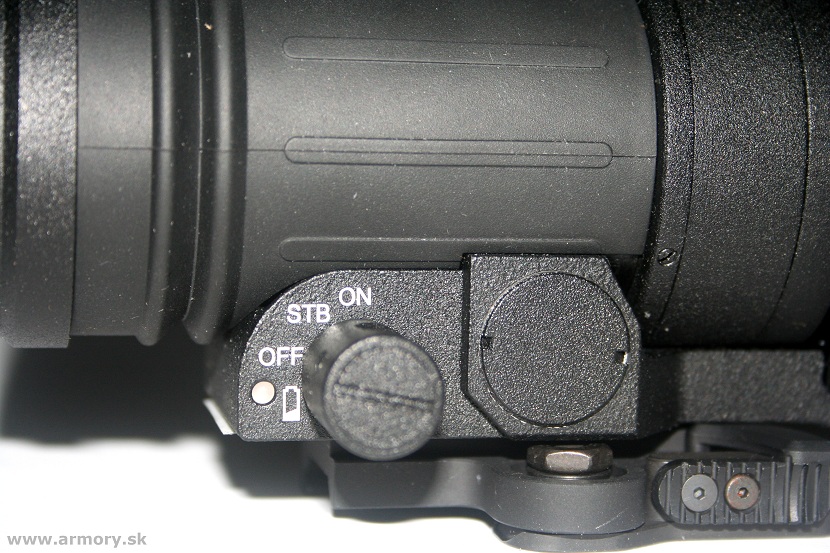

Controls Direct
Remote Control Yes
Automatic Brightness Control Yes
Bright Light Cut-off Yes
Infrared Illuminator Detachable IR450 (optional)
IR Indicator Yes
Low Battery Indicator Yes
Power Supply 1x1.5 V AA type battery or
1x3 V CR123A type battery
Battery Life 60 hours (3 V)
30 hours (1.5 V)
Reticle System No
Windage & Elewation Adjustment No
Environmental Rating Waterproof
MIL-STD-810 Yes
Operating Temperature -20 to +50 °C
Storage Temperature -50 to +50 °C
Dimensions 177x85x83 mm / 7.0x3.4x3.3”
Weight 0.84 kg / 1.85 lbs
