Only for military and law enforcement customers.

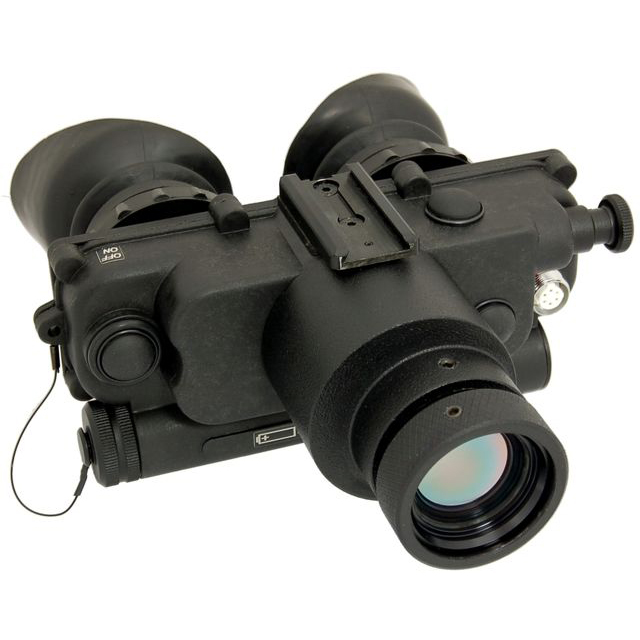

Thermal Imaging Goggles LVLlG-7 built by the most common and convenient “two eyes-one lens”, goggles type optical concept. LVLlG-7 enables law enforcement personnel to see heat signatures of objects, people and other objects. LVLVLlG-7 detects extremely small differences in temperature, so that User can distinguish people from their immediate surroundings. Unlike conventional Night Vision equipment, which requires light or special illuminators and is incapacitated by smoke, fog, and often other particulates LVLlG-7 generates high quality digital images on the darkest nights, even through smoke and fog. While darkness and camouflage can defeat night vision, suspects cannot hide from LVLlG-7. Their own body heat gives them away. The LVLlG-7 thermal imager is a powerful tool for tactical, surveillance and scene assessment applications. Its small size, light weight and convenient biocular eyepiece make the LVLlG-7 simple and yet, very effective in operation. Law enforcement and public safety officers can use thermal imaging technology to conduct hidden compartment searches, perimeter surveillance, marine or ground surveillance, safer flights, structure profiling  activities,  fugitive  and  rescue  searches,  disturbed  surface investigations, pollutant searches and vehicle pursuits. In fire and rescue applications, thermal imaging is used to conduct scene size up, in-fire attack, search and rescue, hazmat assessments and post-fire overhaul.

TIG-7 Unique Features:

•  Digital Zoom 2X or 4X control.
•  Black Hot/White Hot polarity switch.
•  High Performance Color Displays.
•  Mil. Spec. Manual Gain (Brightness) Control.
•  Video-Out, External Power-In, Service USB-Out.
•  Small, Light Weighted, Rugged, Fully Sealed and Waterproof body.
•  Video-Out: standard RCA, cable included.

TIG-7 Optical Features:

Lens Size                                   25 mm          16 mm            8.5 mm
Field of View                               11 x 8 deg.    17 x 12 deg.    32 x 24 deg.
Magnification                              1.8X              1.4X                1X
Detection range of human figure   475 m            305 m            170 m
Detection range of Working Car    900 m           550 m             300 m
Lens Material                             Ge                 Ge                 Ge

TIG-7 Tech. Data & Characteristics:

Thermal Imaging Core (TIC)	Amorphous Silicon Microbolometer  160 x 120
Spectral Responce	7-14 um
Refresh Rate	30 Hz
Thermal Sensitivity	<50  mK
Video Signal Resolution	640 x 480  NTSC768 x 574 PAL
Display Type & Resolution	640 x 480
Interpupillary Adjustments	54-76 mm
Diopters Adjustments	+2/-6
Powered By	2 pc. AA lithium batteries
Continuous Operating Time on one battery	Up to 4 hours
Dimensions	160 x 145 x 70 mm
Weight	450 grams

Additional Options Available:

• B&W or Full colorization of displays.
• 50 mm “snap-on” germanium lens.
• Head Gear “PBS-7” type. (Flip Up)
• Helmet Mount “PVS-7” type.
• Helmet Mount “PBS-7” type. (Flip Up)
• Shuttered, self closing Eye Guards.
• External Li-Ion Battery Pack with charger
(good for up to 7 hours continuous use).
• Video-Out-To USB Adapter & Software.
