Nachtsichtgerät digital Yukon Pulsar

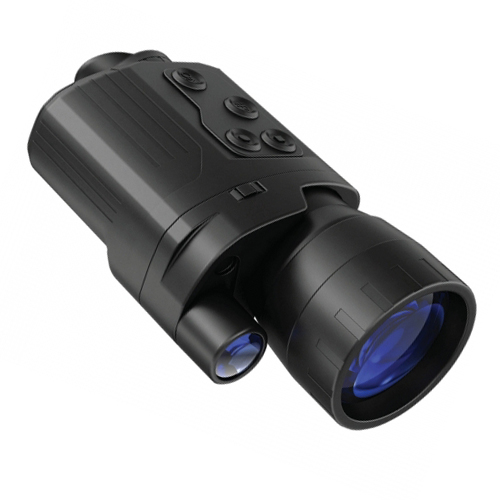

The Recon X550 is a compact and ergonomic digital night vision device featuring high light gathering capacity (F/d = 1.0). High sensitive CCD array and Sum Light signal processing program ensure a great viewing range up to 400 meters.

The Recon X550 is outfitted with a jack enabling connection of peripheral equipment; it functions both in video out mode and video in mode. Video out mode allows video recording without use of adaptors and camcorders or cameras; video in mode can be employed to transmit image via radio channel from remote cameras to Recon’s display.

The built-in IR illuminator (805 nm wavelength is optimal for night vision) permits the device to operate in complete darkness. Optionally you may use with the Recon X550 additional, more powerful infrared illuminators including “invisible” version (940nm). The Recon X550 has a specially design mount combining Weaver and 1/4 inch standards to affix various accessories.

Technical specifications:

MODEL # 78026
Generation  Digital
Magnification, x  5.5
Lens diameter, mm  50
Max. Viewing Range, m  5 … 600
Eye Relief, mm  12
Exit Pupil, mm  4
Diopter Adjustment, diopter  ±5
Resolution, lines per mm, min  40
Power Supply  4...6.3 (4xAA)
Operating time (without/with IR), hour  4/3.5
Video Output Signal Standard *  CCIR / EIA
Camera resolution, pixel (CCIR / EIA)  752x582 / 768x494
Type of CCD sensor CCIR / EIA  SONY ICX-659AL 1/3 / SONY ICX-658AL 1/3
Min/max working illuminance(f1.2, S/N 20dB) lux  0.0001 / 30000
Operating Temperature  °C -10 … +45°C
Tripod mount, inch  1/4
Degree of protection, IP code (IEC 60529)  IPX6
Dimensions, mm  196x83x62
Weight (without batteries), kg  0.5
*In normal viewing conditions (natural nocturnal illuminance 0.05 lux (quarter moon), no fog, dust, etc.)  ** Depending on the region sale
