TS-Series
Thermal imaging cameras for wildlife observations

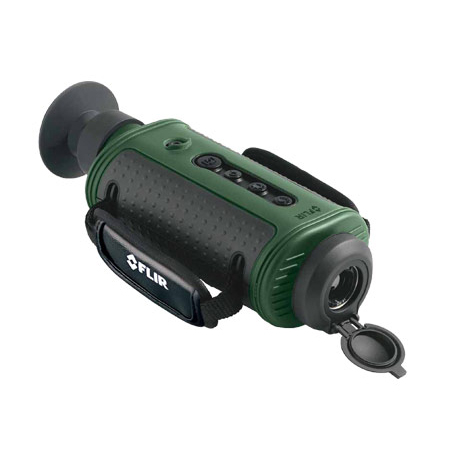

The FLIR Scout TS-Series are rugged handheld thermal imaging cameras that have been especially developed for wildlife observations and hunters. Thermal imaging cameras need no light whatsoever to produce an image. They help you to see clearly at night, in practically all weather circumstances.
After sunset, a lot of animals are active. With the help of a thermal imaging camera like the
TS-Series you will be able to monitor their activities. The TS-Series will not only help you to find animals in total darkness but during daylight as well.

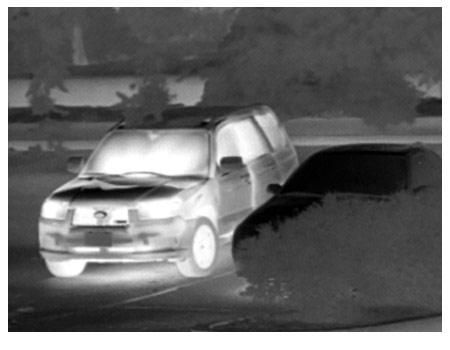

Thermal imaging cameras make extremely small temperature differences visible. Based on these temperature differences they create a clear image. Furthermore, thermal contrast is extremely difficult to mask. This means that during daylight you will clearly see animals that are hidden in trees or bushes. Their natural camouflage will not help them to hide anymore.
Thermal imaging cameras are widely used by professional documentary makers and hunters worldwide. Until now they have been extremely expensive. The TS-Series are now bringing thermal imaging cameras within reach of nature and wildlife enthusiasts and for hunters.
InstAlertTM
The unique InstAlert feature colors the hottest parts in the thermal image red. This makes it extremely easy to spot animals in the thermal image.
Crisp thermal images, choice of image quality
The TS-Series produces thermal images of 240 x 180 or 320 x 240 pixels on which the smallest of details can be seen. Advanced internal camera software delivers a crisp image without the need for user adjustments.
Different versions available
The TS Series is available in a Basic and a Pro version. The Pro versions contain useful features such as still image and video storage. The images and video can be used to insert in your own video or photo collection.
Wide angle lens

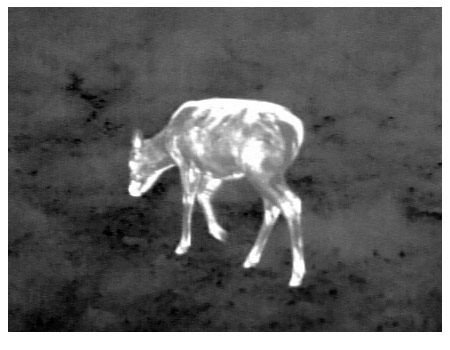

The TS-Series are providing a 24° field of view. It offers an excellent combination of range performance and situational awareness. A deer for example can be spotted at about 450 meters away, in total darkness. For situations where longer range performance is needed a 2X extender is available. It spots a deer at approximately 790 meters.
For even longer range performance, the TS32r is available. It is equipped with a 7° lens. Due to the narrow field of view it can be used to spot a deer at about 1,450 meters away.
Hot Shoe & Shutterd Eyepiece
The TS-Series come standard with a “Hot Shoe”. Not only does it allow for tripod mounting of the TS-Series it also has a power in and video out jack. This means that you can put the TS-Series in a certain position and follow what is happening from a hidden location, on a large monitor.
The shuttered eyepiece keeps light from coming out of the viewfinder and avoids alarming animals or other target subjects.
Technical Specifications:
The FLIR Scout TS-Series are rugged handheld thermal imaging cameras that have been especially developed for wildlife observations and hunters. Thermal imaging cameras need no light whatsoever to produce an image. They help you to see clearly at night, in practically all weather circumstances.
General specifications:
IMAGING PERFORMANCE
Detector type Uncooled Focal plane array Vanadium Oxide (VOx) microbolometer
Spectral range 7.5 to 13.5 µm
Thermal sensitivity <50 mK at f/1.0 at +25°C
Image frequency 8.3 Hz Pal
Image processing Digital Detail Enhancement (DDE)
IMAGE PRESENTATION
Viewfinder LCD screen
Video output PAL composite video; RCA jack
Image polarity White hot / black hot; selectable InstAlert
On-screen symbology Standard
POWER
Requirements 4 AA Batteries; rechargeable NiMH (included), non-rechargeable Li-Ion or Alkaline
Battery life > 5 hours on NiMH batteries - 120 hours in stand-by with NiMH batteries
ENVIRONMENTAL SPECIFICATIONS
Humidity non condensing 5% to 95%
Encapsulation IP67
Drop Operational after 1 m drop onto concrete
STANDARD PACKAGE
Camera, Hot Shoe, 4 Rechargeable AA Batteries, AC Power Adapter/Charger, Car Adapter/Charger, Neck Lanyard, Operator’s Manual, USB Cable, Video Output Cable, SD Card.
Specification:
Image Resolution 240 x 180
Field of View - H x V 24° x 18°
Field of View w/Optional 2X Extender – H x V 12° x 9°
Freeze Image on LCD display Yes
SD /SD HC Card enabled (up to 16Gb) No
Still Image Storage on SD /SD HC Card No
Video Storage (MPEG -4) on SD /SD HC Card No
2x Digital E-Zoom No
Diopter Adjustment + 2 Yes
US B2 Port (for SW updates/upgrades) Yes
Weight incl. batteries (w/o 2X Extender) 1.59 lb (721 g)
Size - L . W . H (w/o 2X Extender) 9.36” x 3.33” x 2.62” (256 x 84.5 x 66.5 mm)
Operating Temp. 32°F to +122°F (0°C to +50°C)
Storage Temp. -4°F to +158°F (-20°C to +70°C)
Common Features
Detector Type Longwave Uncooled VOx Microbolometer
Video Output (9 Hz refresh rate) NTSC or PAL composite video; Aux Video Outout available via RCA jack on detachable Hot Shoe
Built-In Viewfinder Display Color VGA LCD with brightness control and on-screen symbology
Power Button On / Off / Standby
Start up from stand-by <1.5 seconds
Battery Type 4 AA NiMH Batteries (included); Li-Ion or Alkaline optional (not included)
Battery Life (Operating / Stand-By) >5 Hours / ~120 Hours (on included NiMH batteries)
Battery Recharging Detachable Hot Shoe Charging Port for AC Power Adapter/Charger -or- Car adapter/Charger (both chargers and Hot Shoe included)
Polarity / Detection Palettes Selectable Black Hot, White Hot or FLIR “Instalert”; FLIR Proprietary Digital Detail Enhancement
Fixed Use Standard tripod mount
Rating / Environmental IP-67, Submersible, 1 m drop
Performance
Range Performance* with std 24° Lens / with 2. Extender ~350 yds (~320 m)/ ~600 yds (~550 m)
Detect Man sized target (~1.8 m . 0.5 m)
